From concept to commissioning we provide complete in-house engineering.
❑ Site surveys
❑ 3D - CAD Drawings
❑ Project Managemen

High Power Busbar is fabricated from either hard drawn high conductivity copper 99.99%
conductivity or 55% conductivity aluminum. The conductors are housed within an aluminum
casing that provides superior thermal properties than PVC cable insulation. All ranges have been
heating rise tested to IEC60439-1
❑ Ratings - 800A, 1000A, 1250A, 1600A, 2000A, 5000A, 3200A, 6600A
❑ Feeder and distribution Busbar
❑ Fully ASTA Tested and certified
❑ Low Impedance sandwich construction
❑ Operating temperatures to IEC 60439-1 & 2
❑ Copper or Aluminum Conductors
❑ Degree of protection IP4X, IP5X, IP6X
❑ Multiple six bar configuration to suit project requirements:
❑ TP&N
❑ TP&N with 100% earth (case)
❑ TP&N complete with 100% Clean Earth
❑ TP&N (200% Neutral)

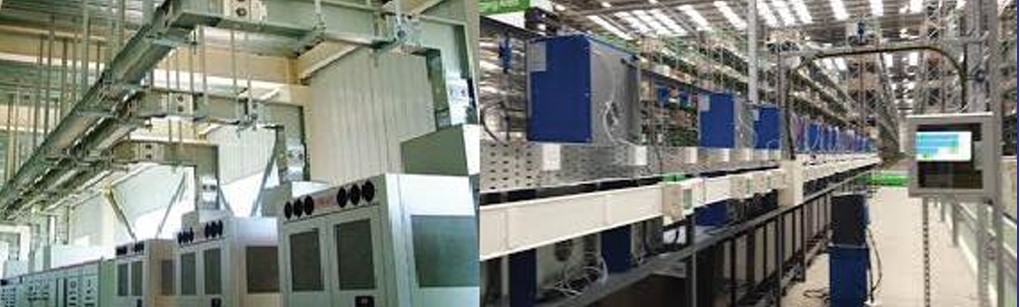

High Power busbar is a patented range of Busbar Trucking designed and manufactured in
accordance with IEC60439-1 IEC60439-2 and IEC61439-6 that is utilized within building and
industrial applications to deliver power to sub distribution units.
High Power Busbar is a range of busbar trucking that is manufactured with an electrostatic
application of, non-hygroscopic, chemical resistant, insulating resin coating on each conductor.
This allows minimal separation and a sandwich type compact construction that reduces electrical
losses, optimizes dimensions and is critical for high current applications.
High Power Busbar is manufactured in our EN IS09001 :2008 ISOI 4001. 2004 EN OHSASI 8001
ASTA and KEMA certified facility with UL
